Ghostpong 에서는 유저의 프로필 사진 업로드 기능을 지원하고 있습니다. 서버에 직접 static file 들을 업로드하고 serving 하는 기능을 구현했던 과정을 소개합니다.
1. serve static
https://docs.nestjs.com/recipes/serve-static
Nest 문서가 너무 잘 되어있어서 5초만에 따라할 수 있습니다.
yarn add @nestjs/serve-static
패키지 설치 후 AppModule
에 ServeStaticModule
을 설정해주면 됩니다.
app.module.ts
@Module({
imports: [
...
ServeStaticModule.forRoot({
rootPath: join(__dirname, '..', '..', '..', 'public'),
renderPath: '/img',
serveStaticOptions: { index: false, redirect: false },
}),
...
],
})
https://github.com/nestjs/serve-static/blob/master/lib/interfaces/serve-static-options.interface.ts
여기서 옵션을 참고하여 작성했습니다.
static file 이 이미지 파일 뿐이었기 때문에 directory 로 요청이 오면 index.html
을 보여주는 index
와 path 가 directory 이면 '/' 을 붙여주는 redirect
설정은 false
로 설정했습니다.
2. file upload
https://docs.nestjs.com/techniques/file-upload#basic-example
nest 는 express 패키지인 multer 를 사용해서 multipart/form-data
로 오는 파일을 처리합니다. multer 는 multipart/form-data
에서 지원하지 않는 형식의 데이터는 처리할 수 없습니다.
이미지 업로드하려면 request body 에 string 으로 담아줘야하는데 이거 format 이 multipart/formdata
임
단일 파일을 업로드하려면 FileInterceptor()
인터셉터를 라우트 핸들러에 연결하고 @UploadedFile()
데코레이터를 사용하여 request에서 파일을 추출하기만 하면 됩니다.
@Post('image')
@UseInterceptors(FileInterceptor('image'))
uploadImage(@UploadedFile() file: Express.Multer.File) {
...
}
@UploadedFile
라우트 핸들러 매개변수 데코레이터로 file object 를 추출하고 데코레이터가 달린 매개변수에 추출한 파일을 넣어줍니다. Express 기반 애플리케이션을 위한 다중 미들웨어와 함께 사용됩니다.
FileInterceptor
두 가지 인자를 받습니다.
- fieldName: HTML form 에서 파일을 hold 할 이름 -> client 에서
multipart/form-data
형태로 파일을 보내줄 때 name 을 해당 인자로 설정해줘야 합니다. - options : MulterOptions 타입의 옵셔널 오브젝트. multer constructor 에서 쓰이는 것과 동일함.
주의 : 파이어베이스같은 써드파티와 호환이 안될 수도 있음
File validation
파일 크기나 mime type 을 체크하는 유효성 검사를 위해서는 pipe 를 만들어서 UploadedFile
데코레이터에 바인딩하면 됩니다.
@nestjs/common
에서 file validation 을 위한 내장 파이프 (ParseFilePipe) 도 제공하고 있습니다.
ParseFilePipe
validators 인자에 FileValidator
타입의 validator 를 여러 개 설정해서 사용할 수 있습니다.
@Post('file')
uploadFileAndPassValidation(
@Body() body: SampleDto,
@UploadedFile(
new ParseFilePipe({
validators: [
// ... Set of file validator instances here
]
})
)
file: Express.Multer.File,
) { ... };
}
validators 외에 다음 추가 옵션도 설정할 수 있습니다. (optional)
errorHttpStatusCode
: 모든 validator fail 시 throw 될 HTTP 상태코드 (기본 400)exceptionFactory
: 에러메세지를 만들고 에러 리턴할 Factory
FileValidator 는 커스텀으로 만들 수도 있고, 빌트인으로 제공되는 것을 사용해도 됩니다.
커스텀하려면 다음 형태로 만들 수 있습니다.
export abstract class FileValidator<TValidationOptions = Record<string, any>> {
constructor(protected readonly validationOptions: TValidationOptions) {}
/**
* Indicates if this file should be considered valid, according to the options passed in the constructor.
* @param file the file from the request object
*/
abstract isValid(file?: any): boolean | Promise<boolean>;
/**
* Builds an error message in case the validation fails.
* @param file the file from the request object
*/
abstract buildErrorMessage(file: any): string;
}
isValid 에서는 비동기 validation 도 지원합니다. file 을 Express.Multer.File 타입으로 지정해서 타입안정성도 보장할 수 있습니다.
빌트인으로 제공되는 FileValidator 는 두 가지가 있습니다.
MaxFileSizeValidator
: 파일 사이즈가 주어진 값 (byte) 보다 작은지 체크FileTypeValidator
: 주어진 값과 매치되는 마임타입인지 체크
File validation 을 ParseFilePipe 로 하는 경우 다음과 같이 사용할 수 있습니다.
@UploadedFile(
new ParseFilePipe({
validators: [
new MaxFileSizeValidator({ maxSize: MAX_IMAGE_SIZE }),
new FileTypeValidator({ fileType: /image\\/(png|jpeg|gif)/ }),
],
}),
)
MAX_IMAGE_SIZE 보다 큰 파일이나 image/png, image/jpeg, image/gif 형태가 아니면 400 에러코드를 리턴합니다.
ParseFilePIpeBuilder
builder 를 이용해서 validator 객체를 생성하지 않고 설정할 수도 있습니다.
@UploadedFile(
new ParseFilePipeBuilder()
.addFileTypeValidator({
fileType: 'jpeg',
})
.addMaxSizeValidator({
maxSize: 1000
})
.build({
errorHttpStatusCode: HttpStatus.UNPROCESSABLE_ENTITY
}),
)
file: Express.Multer.File,
저는 단일 파일 처리만 구현했지만 다중 파일 업로드도 가능하니 공식 문서를 참조하시면 됩니다.
https://docs.nestjs.com/techniques/file-upload#array-of-files
Validation 하는 위치에 대한 고민
업로드할 파일의 limit, MIME type 을 체크해야 했는데, option을 넘겨서 multer 에서 직접할 수도 있고 nest의 ParseFilePipe
에서도 할 수 있었기 때문에 고민이 되었습니다. pipe 의 역할을 생각해보면 pipe가 맞았지만 multer 기능을 (FileInterceptor
) 놔두고 굳이 인터셉터보다 뒤에 실행되는 파이프에서...? 하는 생각이 들었습니다.
고민하던 와중 확실히 인터셉터로 정한 계기가 생겼습니다.
파일 저장 api 에서 사용하던 FileInterceptor
의 코드입니다.
@UseInterceptors(
FileInterceptor('image', {
fileFilter: (req, file, cb) => {
if (!file.mimetype.match(/image\/(gif|jpeg|png)/)) {
cb(new UnsupportedMediaTypeException('gif, jpeg, png 형식의 파일만 업로드 가능합니다.'), false);
}
if (file.size > MAX_IMAGE_SIZE) {
cb(new PayloadTooLargeException('이미지 파일은 4MB 이하로 업로드 가능합니다.'), false);
}
cb(null, true);
},
storage: diskStorage({
destination: 'public/asset',
filename: (req, file, cb) => {
// FIXME : auth guard 적용 후 req.user.id로 변경
const myId = req.headers['x-my-id'];
const extArray = file.mimetype.split('/');
cb(null, 'profile-' + myId + '.' + extArray[extArray.length - 1]);
},
}),
}),
)
storage 옵션을 통해 파일을 저장하는데 만약 fileFilter 에서 적용하는 파일 validation 부분이 ParseFilePipe
에서 적용된다면 nest 의 생명 주기에 따라 전위 인터셉터 -> 파이프 순으로 실행되기 때문에 파일이 먼저 생성되고 validation 이 이루어집니다.
그러면 따로 pipe 에서 unlink 를 실행해야 합니다. 정말..... 아름답지 않습니다....................
아니면 데이터 상에 multer 에서 읽은 file 을 저장해놨다가 pipe 에서 save 하는 방법도 있을 듯 합니다만 이것도....아름답지 않습니다.............

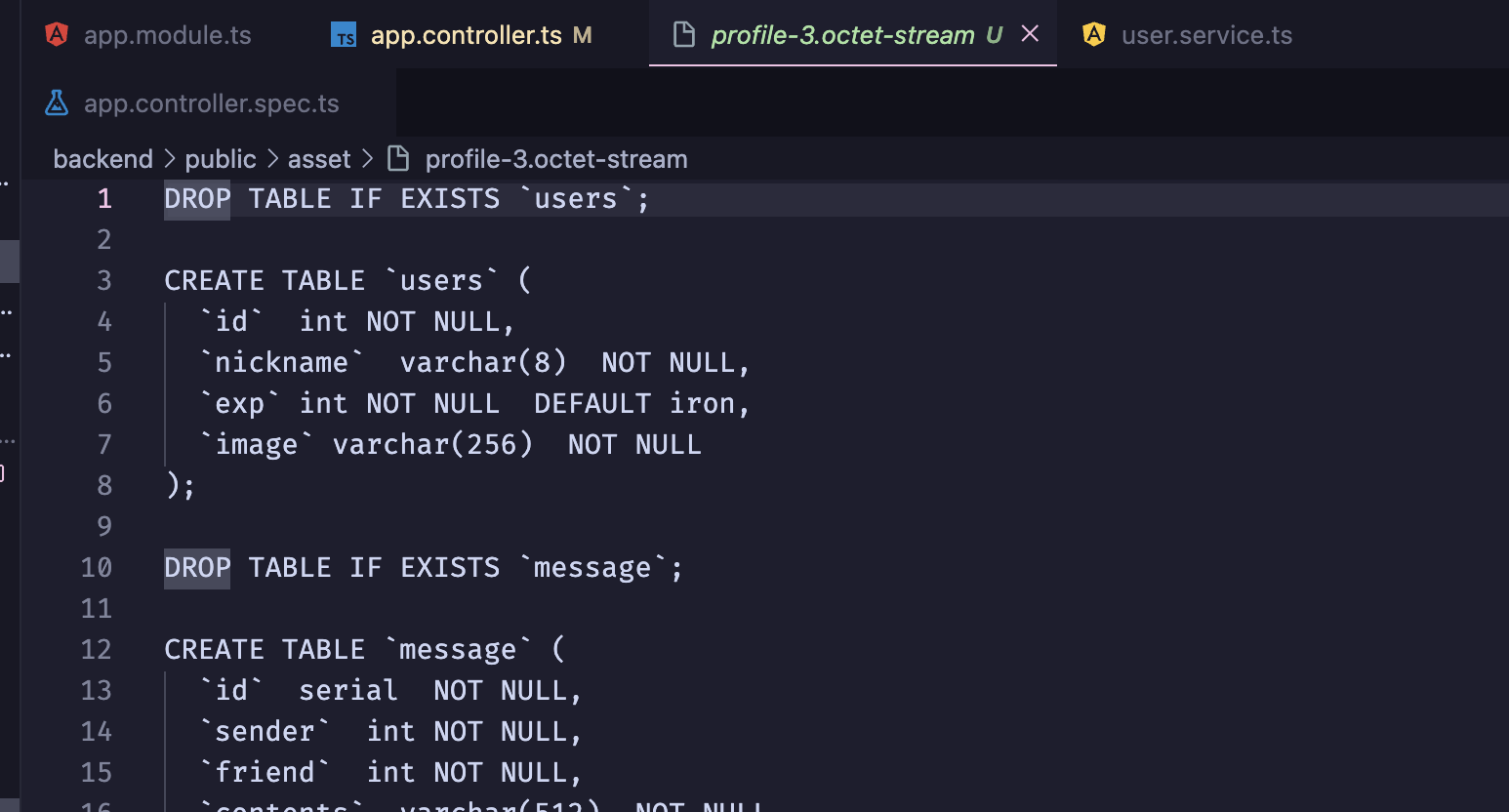

테스트로 Ghostpong 에서 지원하지 않는 sql 형식의 파일을 업로드 해 봤습니다.
와! 정말 생각한대로 되었습니다.
그래서 pipe 는 버리고 FileInterceptor
로만 구현하게 되었습니다.
그러나..
재앙의 시작

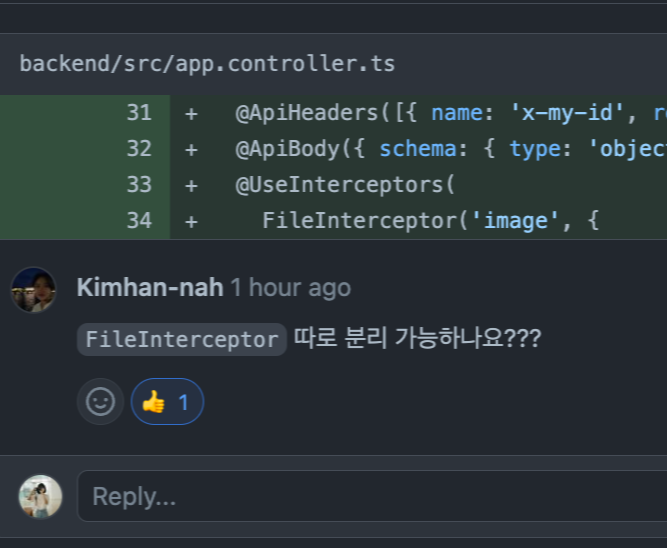

controller 에 decorator 로 너무 많은 코드가 들어가버린 나머지 동료분이 분리를 요청해주셨습니다.
저도 썩 마음에 들지 않았기 때문에 아름답지 않습니다 리팩토링을 진행하게 되었습니다.
분리를 위해 FileInterceptor
코드를 따로 작성하여 제가 직접 multer 를 연결하기로 했습니다.
FileInterceptor
는 사실상 multer 를 nest 의 Interceptor 로 감싼 형태기 때문에 리팩토링이 쉽진 않았습니다. 이 글은 10월에 적고 있지만 4월에 겪은 고난이라 힘들었다는 것 밖에 기억이 안나는 게 아쉽습니다. 좀 더 생생하게 기록해둬야 했는데..
근데 지금 생각해보니까 그냥 FileInterceptor
를 상속받아서 옵션만 넘기거나 했어도 될 것 같네요.. 아니면 multer 옵션만 다른 파일에 저장하는 방법도 있었을 것 같습니다.
FileInterceptor
구현
Nest 에서 제공하는 FileInterceptor
코드입니다.
export function FileInterceptor(
fieldName: string,
localOptions?: MulterOptions,
): Type<NestInterceptor> {
class MixinInterceptor implements NestInterceptor {
protected multer: MulterInstance;
constructor(
@Optional()
@Inject(MULTER_MODULE_OPTIONS)
options: MulterModuleOptions = {},
) {
this.multer = (multer as any)({
...options,
...localOptions,
});
}
async intercept(
context: ExecutionContext,
next: CallHandler,
): Promise<Observable<any>> {
const ctx = context.switchToHttp();
await new Promise<void>((resolve, reject) =>
this.multer.single(fieldName)(
ctx.getRequest(),
ctx.getResponse(),
(err: any) => {
if (err) {
const error = transformException(err);
return reject(error);
}
resolve();
},
),
);
return next.handle();
}
}
const Interceptor = mixin(MixinInterceptor);
return Interceptor;
}
rxjs 가 마구 쓰여서 겁나 어렵습니다.
결과적으로는 거의 따라 구현이 되어버렸습니다..ㅎㅎ
핵심 부분은 intercept()
로 this.multer.single()
에서 파일을 읽어와 Promise를 생성해줍니다. 파일 I/O 는 동기 처리가 되어야 하므로 필수적입니다.
intercept()
의 끝에서 next.handle()
을 해주는데 이걸 해줘야 이후에 실행되어야 할 route handler 를 부를 수 있습니다. Nest 의 Interceptor 문서와 rxjs 의 Observable 문서를 보면 조금 이해할 수 있습니다.
다음은 제가 구현한 FileUploadInterceptor
입니다.
import {
Injectable,
NestInterceptor,
ExecutionContext,
UnsupportedMediaTypeException,
PayloadTooLargeException,
CallHandler,
} from '@nestjs/common';
import { HttpArgumentsHost } from '@nestjs/common/interfaces';
import * as multer from 'multer';
import { FileFilterCallback, diskStorage } from 'multer';
import { Observable } from 'rxjs';
import { MAX_IMAGE_SIZE } from '../../common/constant';
@Injectable()
export class FileUploadInterceptor implements NestInterceptor<void, void> {
async intercept(context: ExecutionContext, next: CallHandler): Promise<Observable<void>> {
const ctx: HttpArgumentsHost = context.switchToHttp();
const multerOptions: multer.Options = {
fileFilter: (_req, file: Express.Multer.File, cb: FileFilterCallback) => {
if (!file.mimetype.match(/image\/(gif|jpeg|png)/)) {
cb(new UnsupportedMediaTypeException('gif, jpeg, png 형식의 파일만 업로드 가능합니다.'));
}
cb(null, true);
},
storage: diskStorage({
destination: 'public/img',
filename: (req, file, cb) => {
const myId = req.headers['x-my-id'];
const extArray = file.mimetype.split('/');
cb(null, 'profile-' + myId + '.' + extArray[extArray.length - 1]);
},
}),
limits: { fileSize: MAX_IMAGE_SIZE },
};
await new Promise<void>((resolve, reject) =>
multer(multerOptions).single('image')(ctx.getRequest(), ctx.getResponse(), (error) => {
error
? reject(
error.code === 'LIMIT_FILE_SIZE'
? new PayloadTooLargeException('이미지 파일은 4MB 이하로 업로드 가능합니다.')
: error,
)
: resolve();
}),
);
return next.handle();
}
}
기존에 fileFilter 에서 size 검사하던 것을 limits 로 변경한 것 이외에는 같은 로직 입니다. file limit 에러를 따로 처리하기 위해 single()
의 return 값에서 error code 를 따로 체크해줬습니다.
fileFilter 에서 size 를 체크하게 되면 아무리 큰 파일이어도 다 올라간 후 체크를 해야 해서 limits 로 업로드 시점에 (파일 객체가 생성되기 전에) 체크를 해주는 것이 성능상 이점이 있어 채택했습니다.
위에서 언급한 부분을 참고하며 핵심 기능만 추가했습니다. 하지만 재사용이 어려워 보여서 multer option 만 따로 빼는 등의 선택이 나았을 것 같네요..
multer 에 대해 깊이 파보고 rxjs 도 살짝 찍먹해봐서 좋은 경험이긴 했지만 아쉬운 부분입니다!
해당 코드가 적용된 pr 을 보고 싶다면?
https://github.com/GhostPangPang/GhostPong/pull/122
